ROADTEC SX-6e Soil Stabilizer - Reclaimer
The Roadtec mid-size SX-6e/ex soil stabilizer-reclaimer features a clean-running 600 hp (447 kW) Cummins® QSX15 engine. It joins the larger 755 hp (563 kW) model in the company’s line of stabilizers-reclaimers. The SX-6e/ex complies with Tier 4 interim and Stage IIIb emission standards. The SX-6e is balanced and powerful. Four cutting speeds and right-hand flush cut allow you to use the SX-6e/ex for a range of projects including stabilizing, pulverizing, or cold recycling.

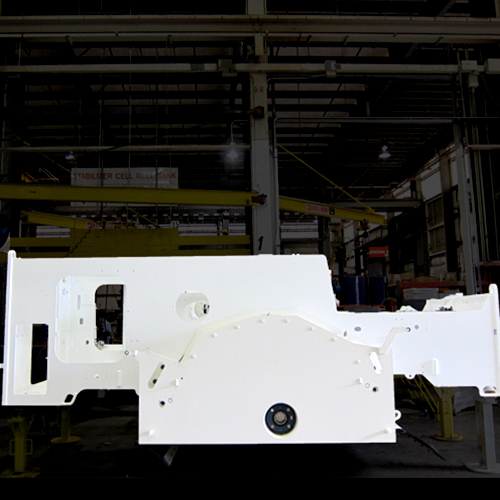

Frame
All Roadtec Stabilizer-Reclaimers are built on sealed box frames. The strong, rigid frames allow a controlled air flow while maintaining the highest level of durability

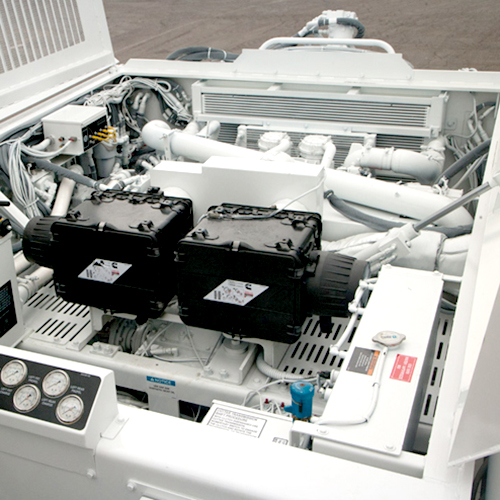

ENGINE ACCESS
Hydraulically raisable doors allow for better access to the engine compartment.

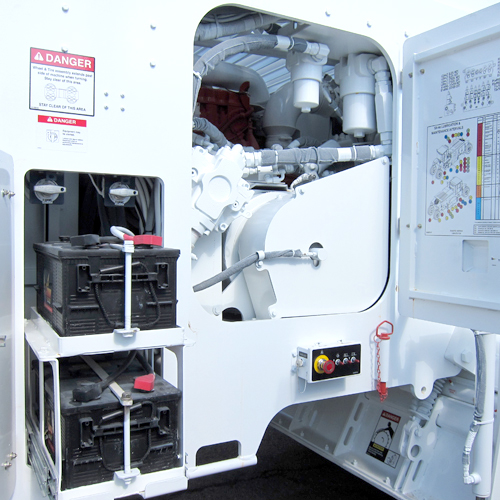

MAINTENANCE FEATURES
Large side doors and slide-out battery racks provide even better maintenance access to the machine.

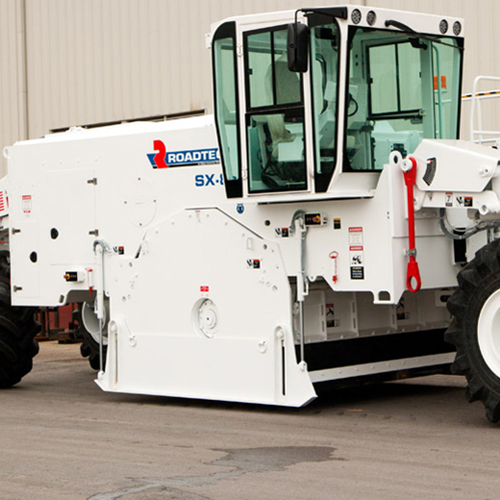

VARIABLE GEOMETRY CUTTER HOUSING
Hydraulically adjustable front and rear doors combined with optimal drum position in the cutter housing provide excellent sizing and material flow.

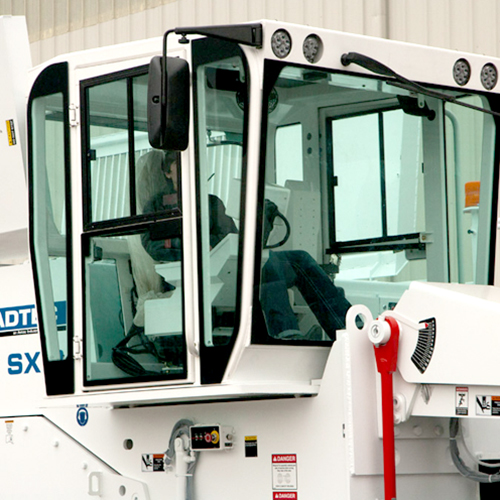

VISIBILITY
The operator platform shifts 18" to the right of center. The operator seat also slides laterally and swings 90º for increased visibility

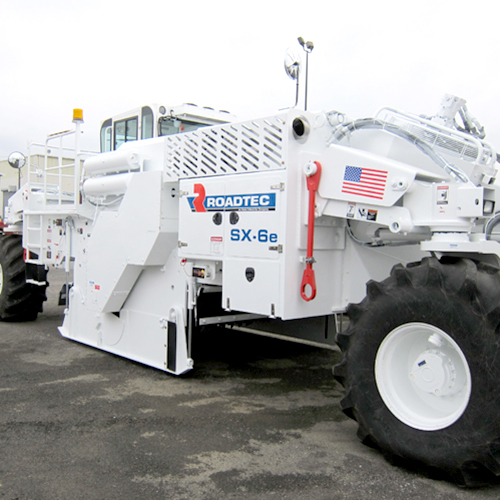

HYDRAULICALLY CONTROLLED SUSPENSION
This feature allows the depth of cut to be selected via push button.
| Engine | ||
| Engine MFG | Cummins | |
| Model | QSX-15 | |
| Emissions Standard | SX-6e : Tier IV | |
| Max Power | hp (kW) | 620 (447) @ 1,850 rpm |
| Number of Cylinders | 6 | |
| Electrical System | Volts | 24 |
| Weight and Dimensions | ||
| Overall length | Feet (m) | 30' 10" (9.39) |
| Shipping width | Feet (m) | 9' 4" (2.83) |
| Shipping height | Feet (m) | 11' 6" (3.51) |
| Inside turning radius | Feet (m) | 19' 6" (5.94) |
| Shipping Weight (w/ 100" Cutter Housing) | lbs (kg) | 73,000 (33,112) |
| Service Capacities | ||
| Hydraulic Tank Capacity | Gal (liters) | 62 (234) |
| Fuel Tank Capacity | Gal (liters) | 320 (1211) |
